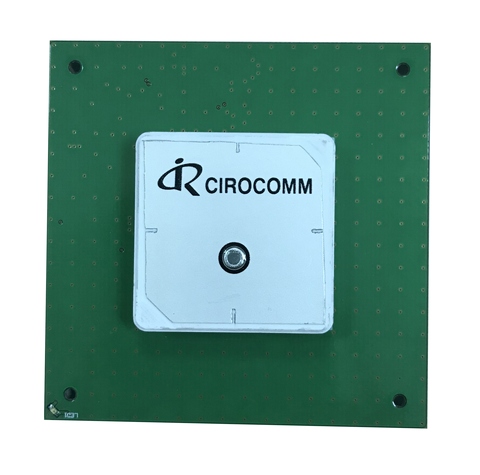

GM-8031 is an easy to use, ultra-high performance, low power, industrial grade GNSS smart antenna module. The built-in NEO-M8T engine board provides precise timing. Its raw data also enables precise positioning with external software, say RTKLIB freeware.
GM-8031 supports multiple satellite positioning systems – GPS, GLONASS/BeiDou, Galileo, QZSS and SBAS. It is performance-optimized so that the same hardware allows configuration of different satellite systems with great performance..
In addition, it also supports either USB or TTL/RS232 interface.
Performance maximized design with big antenna (35x35x6 mm3 ) and ground plane (70x70 mm2 ).
Based on u-blox NEO-M8T engine board
Precise timing for both outdoors and indoors
Dual configurable time pulses
Receiver Autonomous Integrity Monitoring
Multi-satellite positioning systems support
GPS/QZSS/Galileo/GLONASS/Beidou
